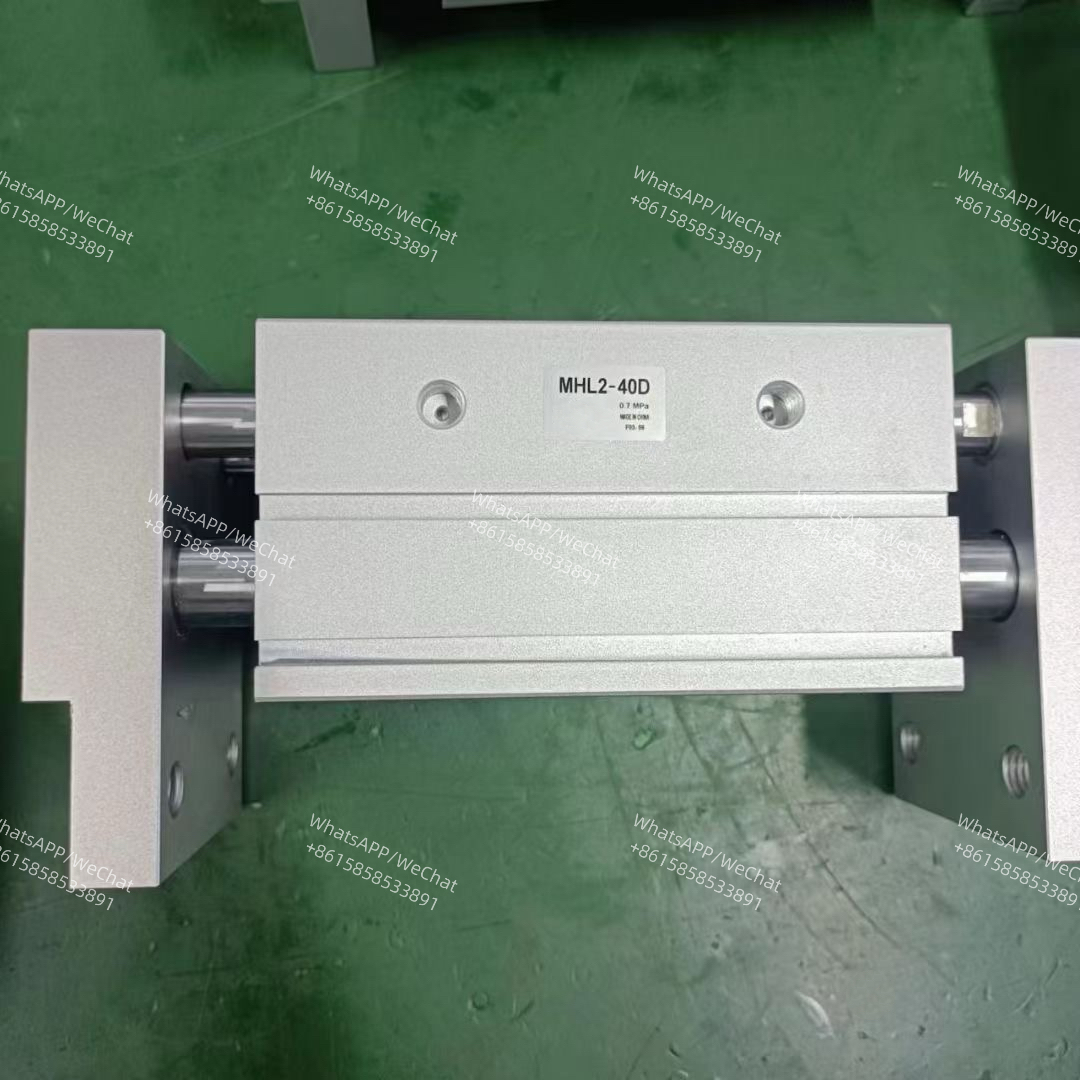

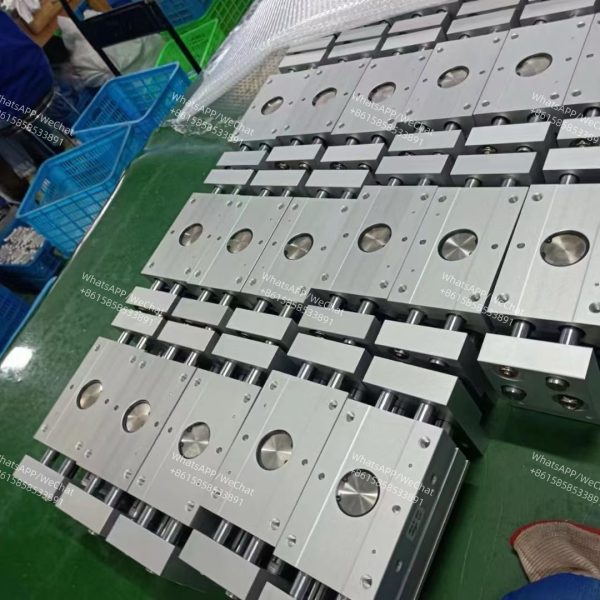

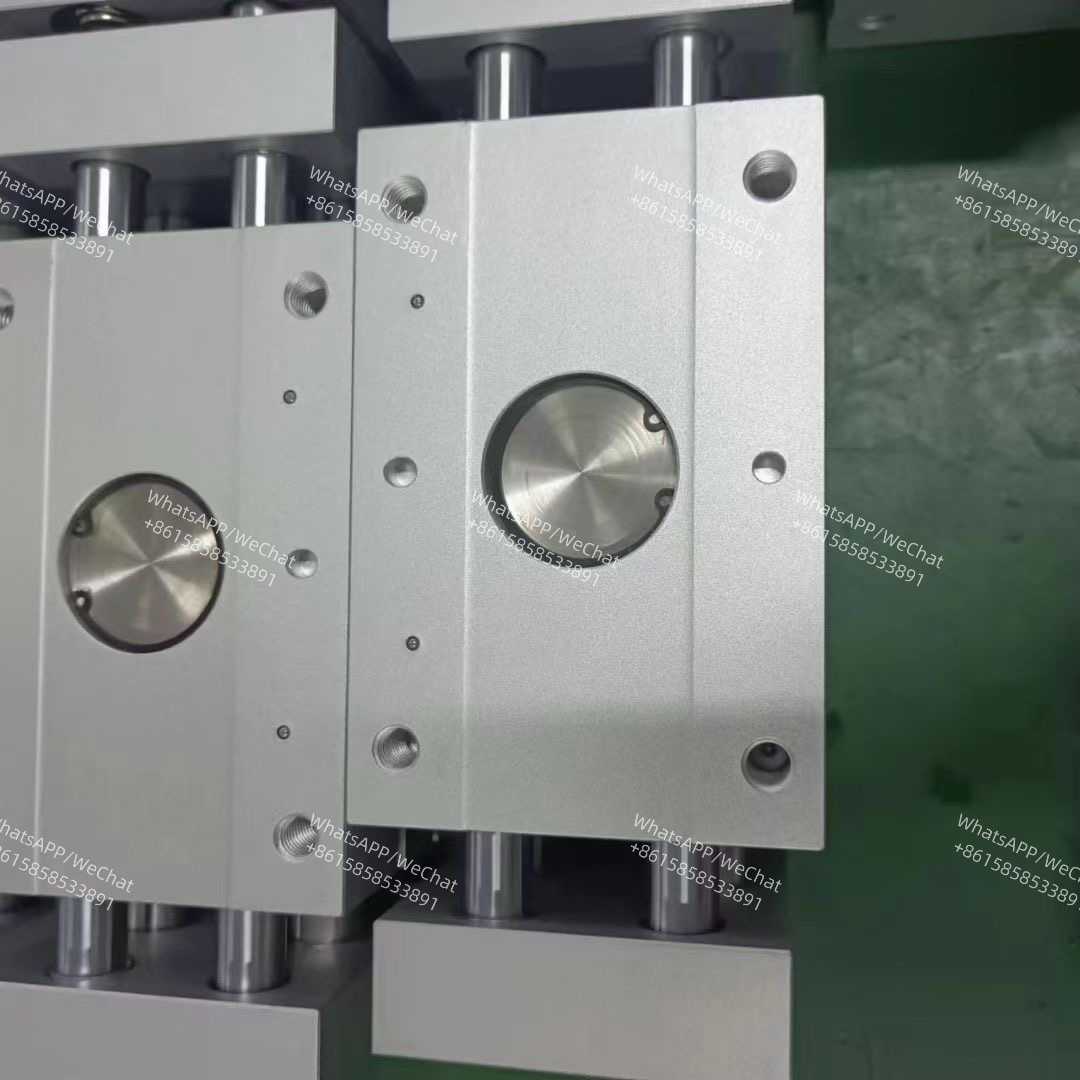

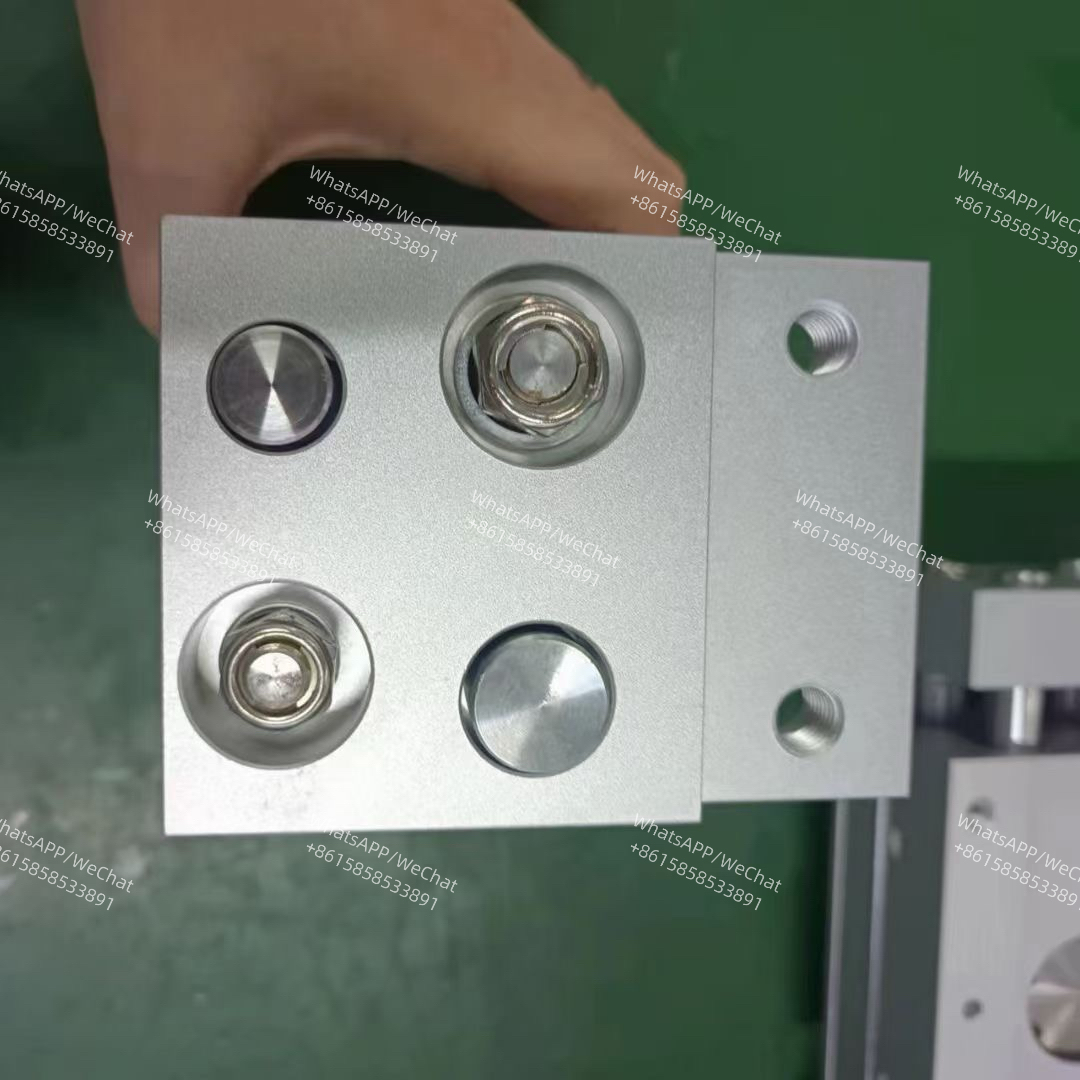

MHL2 Series Parallel Type Wide Pneumatic Gripper

Pneumatic-Gripper-MHL2-Double-Acting-SMC-Replacement-Type-Air-Cylinder-MHL2-10D-16D-20D-25D-10D

SMC Type Mhl2-16D Pneumatic Finger Cylinder

分类 Pneumatic Cylinder

MHL2 10D/16D/20D/25D/10D1/16D1/20D1/25D1 Air Gripper

Pneumatic Gripper MHL2 Double Acting SMC Replacement Type Air Cylinder MHL2 10D/16D/20D/25D/10D1/16D1/20D1/25D1 Air Gripper

Product Feature

1) SMC type parallel air gripper MHL2 series

2) Built-in magnetic,suitable slot on 2 sides is designed for magnetic sensor fixing

3) With high precision integral linear guide and high rigidity gripper,with good material and cylinder body is machined by advance CNC center,our air gripper are with long life time and easy to mantian.

4) High quality/price rate.

5) Double acting or single acting are all available.

Order Code

Product Specifications

Bore(mm)	10	16	20	25	32	40
Working medium	Clean air(40um Filteration)
Guaranteed pressure	0.6Mpa
Min. Working pressure	0.15Mpa	0.1Mpa
Working temperature	-10 to 60℃
Repeatability	±0.1mm
Effective gripping force(N.M)	14	45	74	131	228	396
Port size	M5x0.8				G1/8
